Connect Bytebase to RisingWave

Introduce how to integrate Bytebase with RisingWave for schema management.

Bytebase is a database DevOps tool that provides a streamlined way to manage schema changes, enforce best practices, and collaborate on database development. This guide explains how to integrate Bytebase with RisingWave to manage schema evolution in real-time data processing environments.

Prerequisites

Before you begin, ensure you have the following:

• A running instance of RisingWave (self-hosted or Cloud version).
• A Bytebase instance (self-hosted or Cloud version).
• Database user credentials with the necessary privileges in RisingWave.

Step 1: Set up RisingWave

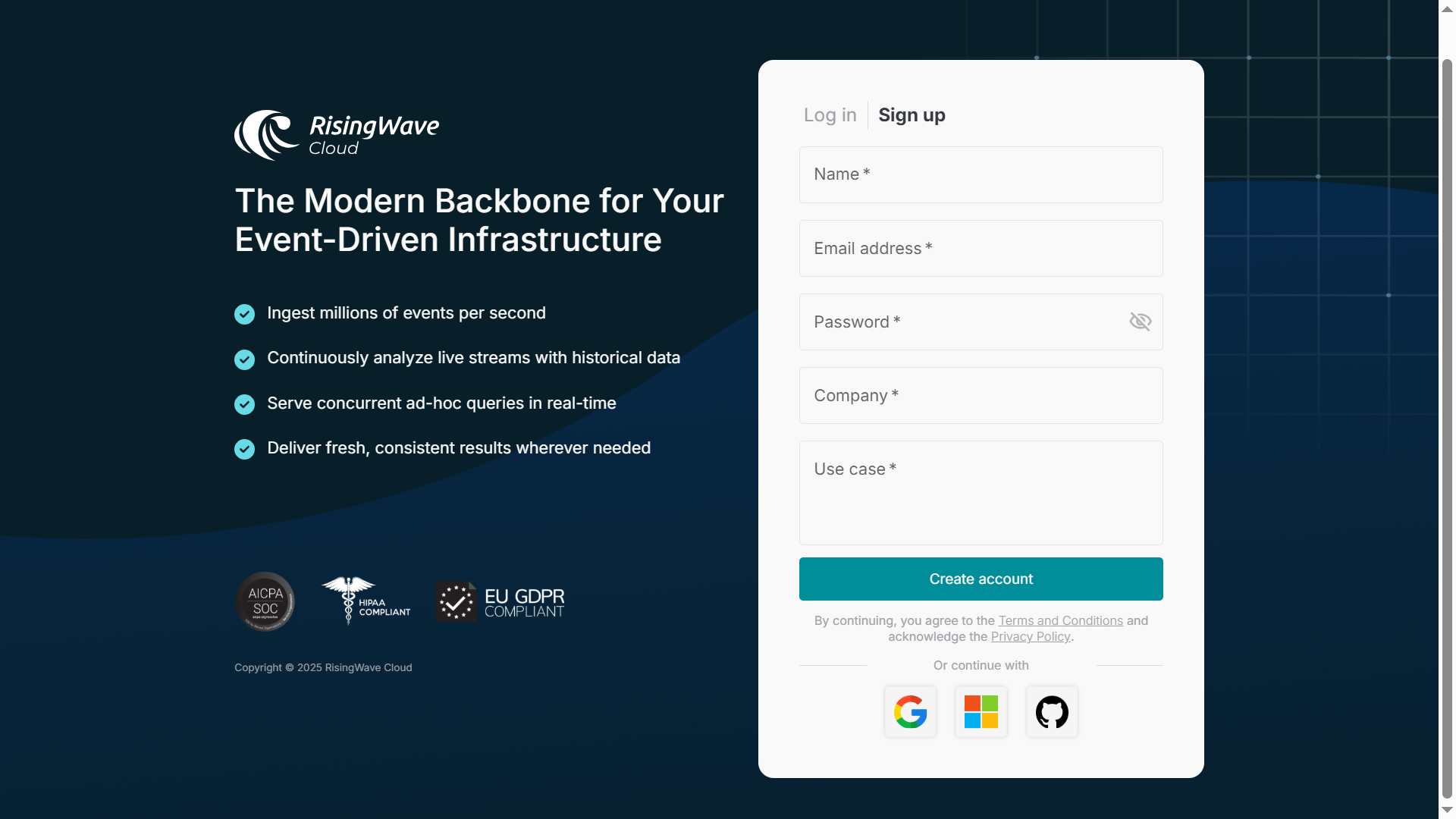

Create a RisingWave cluster in RisingWave Cloud using the free plan. For more information, refer to the RisingWave Cloud documentation.

Step 2: Install and configure Bytebase

You can run Bytebase using Docker or use Bytebase Cloud:

docker run --rm --init \
  --name bytebase \
  --publish 8080:8080 --pull always \
  --volume ~/.bytebase/data:/var/opt/bytebase \
  bytebase/bytebase:3.5.0

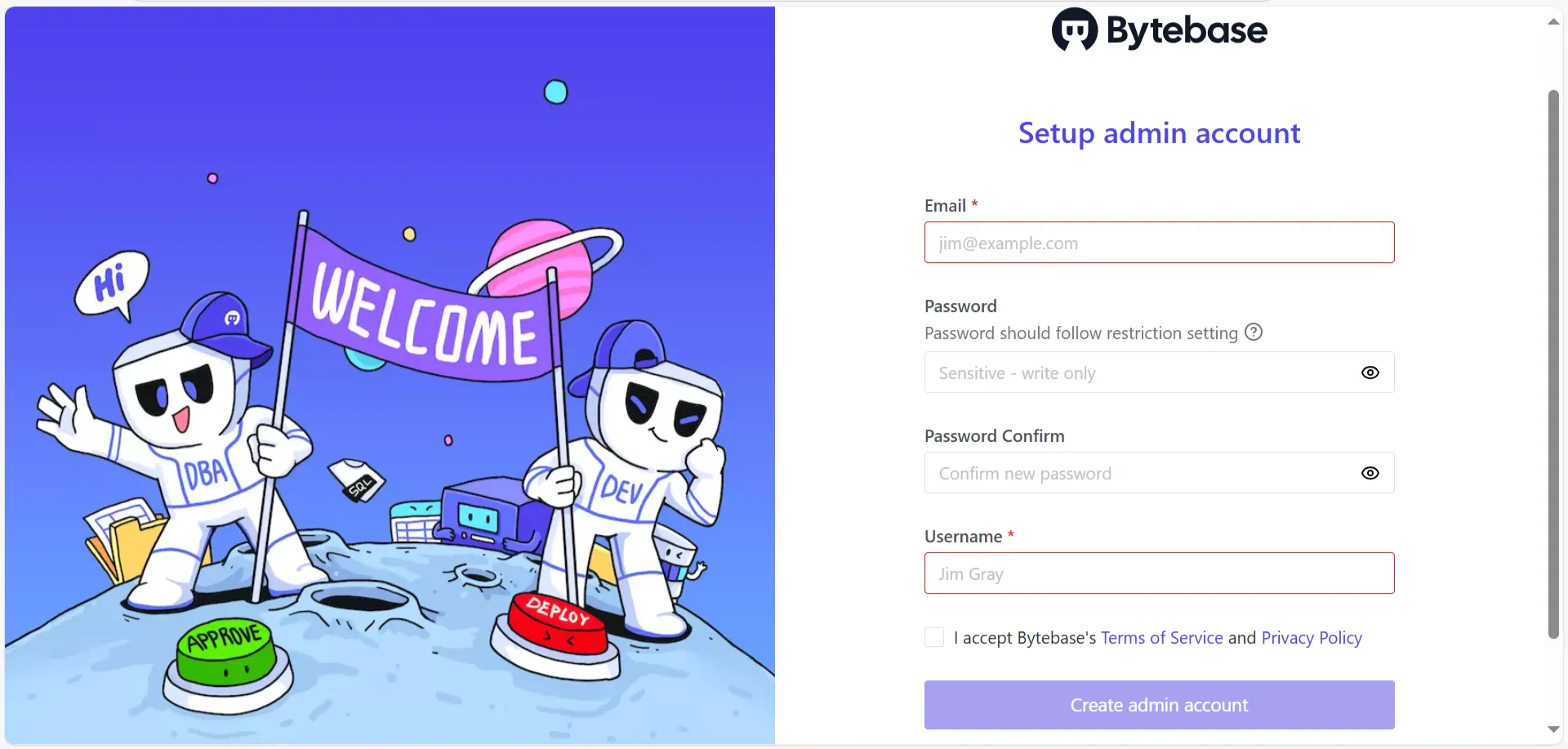

Access Bytebase UI at http://localhost:8080 and set up an admin account.

Then, add RisingWave as a new database:

1. Go to Instances > Add Instance.
2. Select RisingWave as the Instance type (since RisingWave is supported by Bytebase).
3. Enter the following connection details:
   • Instance Name: Any random name
   • Environment: Test
   • Host or Socket: localhost or RisingWave Cloud’s instance host
   • Port: 4566
   • Username: bytebase (the super user that you created)
   • Password: The password you set for the bytebase user
4. Click Test Connection to verify, then click on Create at the end.

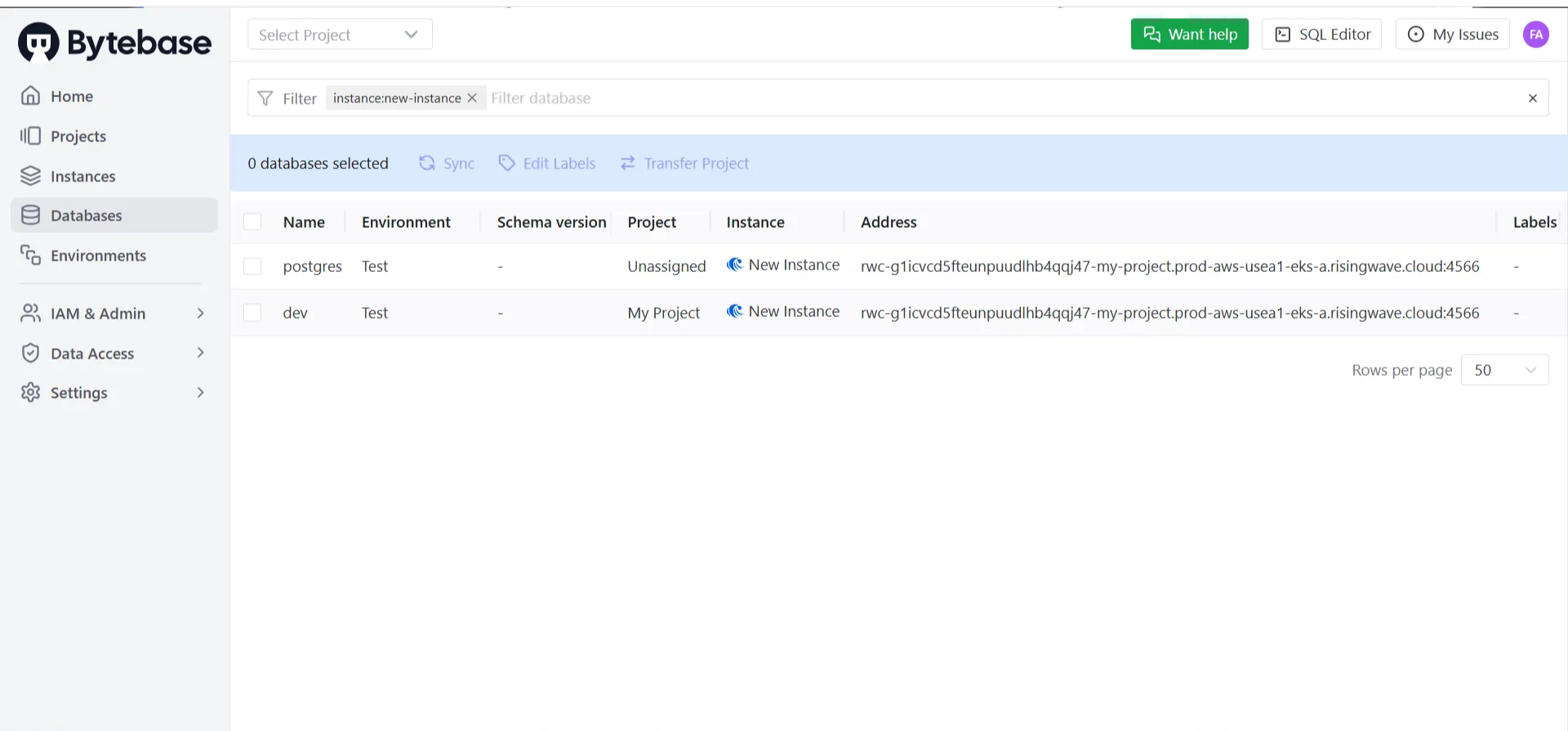

After creating the RisingWave instance, you will see the RisingWave databases under the Databases section as follows:

Step 3: Manage schema changes with Bytebase

Create a schema migration

1. In Bytebase, go to Projects and create a new project.

2. After creating the new project, click on it, then select Transfer DB and choose the RisingWave database named dev. This will transfer the database to the project.

3. Click on the new database instance to view all its details, the Schema Diagram, and open the SQL Editor.

4. Click on SQL Editor and use the following SQL script to create a table in RisingWave in Admin Mode:

   -- Step 1: Create the transactions table
   CREATE TABLE transactions (
       transaction_id INT,
       customer_id INT,
       transaction_type VARCHAR,
       amount DECIMAL,
       currency VARCHAR,
       transaction_tp TIMESTAMP,
       transaction_status VARCHAR
   );

   -- Step 2: Insert sample data into the transactions table
   INSERT INTO transactions (transaction_id, customer_id, transaction_type, amount, currency, transaction_tp, transaction_status) VALUES
   (1, 101, 'Deposit', 500.00, 'USD', '2024-03-15 09:30:00', 'Completed'),
   (2, 102, 'Withdrawal', 200.00, 'EUR', '2024-03-15 10:15:00', 'Pending'),
   (3, 103, 'Transfer', 1000.00, 'GBP', '2024-03-15 11:00:00', 'Completed'),
   (4, 104, 'Deposit', 250.50, 'INR', '2024-03-15 12:45:00', 'Failed'),
   (5, 105, 'Withdrawal', 750.75, 'USD', '2024-03-15 14:20:00', 'Completed'),
   (6, 106, 'Transfer', 5000.00, 'EUR', '2024-03-15 15:30:00', 'Pending');

   -- Step 3: Show data insertion
   SELECT * FROM transactions;


   Below is the SQL Editor of Bytebase:

   Below is the result when querying the table in Bytebase’s SQL editor:

Track schema versions

Bytebase maintains a record of schema changes history, allowing you to:

• Track schema changes
• Roll back problematic migrations
• Enforce approval workflows for schema modifications

Step 4: Automate schema deployments

You can integrate Bytebase with CI/CD pipelines for automated schema deployments:

Use the Bytebase API

Bytebase provides gRPC and RESTful APIs, enabling full automation of database workflows. The UI console itself runs on this API, allowing seamless integration with your internal developer platform.

Key capabilities:

• SQL lint: Enforce SQL best practices.
• Database change deployment: Streamline schema changes.
• Embedded SQL Editor: Execute and validate queries.

GitOps integration

Bytebase supports GitOps workflows, allowing schema changes via pull requests. Connect your repository and configure automatic deployment rules.

Conclusion

By integrating Bytebase with RisingWave, you can efficiently manage schema changes, enforce best practices, and improve collaboration in real-time data streaming applications. This setup ensures schema consistency and reduces errors in production deployments.

For more information on leveraging Bytebase and its features, see Bytebase Documentation.
