The disk cache is a local disk-based caching layer that sits between memory and object storage, reducing latency and object storage costs for performance-sensitive workloads on RisingWave Cloud.
Every RisingWave Cloud cluster comes with a default disk cache configuration. Only Pro plan clusters can customize the cache size and performance tier for the cluster and individual resource groups.

​
When to use disk cache

The disk cache is beneficial when your workload’s active data (the “working set”) exceeds the available memory on your streaming nodes. Without a disk cache, every cache miss must be served from object storage, which adds latency and increases costs. Common scenarios where disk cache helps:
  • Large-state streaming jobs: Joins, time windows, and aggregations that generate internal state larger than available memory.
  • Data serving with frequent reads: Queries against tables or materialized views where the same data is accessed repeatedly.
  • Frequent scaling operations: The cache reduces warm-up time when new nodes are added, since they can read from local disk instead of object storage.
Key benefits:
  • Reduced object storage costs: Fewer object storage reads by serving data from local disk.
  • Lower query latency: Data served from local disk instead of remote object storage.
  • Faster scaling and recovery: New or restarted nodes warm up quickly from local disk rather than refetching from object storage.

​
Cache size

The default cache size scales with the streaming node configuration of your cluster or resource group: approximately 32 GB per RWU for larger streaming nodes (5 RWUs or more), or 100 GB for smaller streaming nodes. A larger cache reduces the frequency of object storage access.

​
Performance tiers

RisingWave Cloud offers up to three performance tiers that control the I/O throughput and IOPS of the cache. The available tiers depend on your cloud provider and region:
Not all tiers are available in every region or cloud provider. The rescale dialog shows only the tiers available for your cluster. For example, some regions may only offer the Standard tier.
The default performance tier depends on your cloud provider and the streaming node size of the cluster or resource group. On GCP deployments that offer only the Standard tier, the default is Standard. Otherwise, larger streaming nodes (5 RWUs or more) default to Performance, while smaller streaming nodes default to Standard.

​
View and configure disk cache

The Disk Cache page shows the current cache configuration and lets you adjust the cache size and performance tier independently for your cluster and each resource group.
  1. Go to the RisingWave Cloud dashboard, open your cluster, and select Disk Cache under the Management section.
  2. To configure a specific resource group, select it from the Resource group dropdown, if available. Leave the selection empty, or deselect a previously selected group, to configure the cluster.
  3. Review the Recommended disk cache config panel at the top. Click Apply to fill the form with the recommended size and tier for the current streaming node shape of your cluster or selected resource group.
  4. Adjust Size in GB using the input, slider, or preset buttons. The minimum is 64 GB and the maximum depends on your cluster.
  5. Select a Performance tier. The recommended tier is marked, and only tiers available in your region and cloud provider are shown.
  6. Click Save changes to apply the new configuration to the cluster or selected resource group.

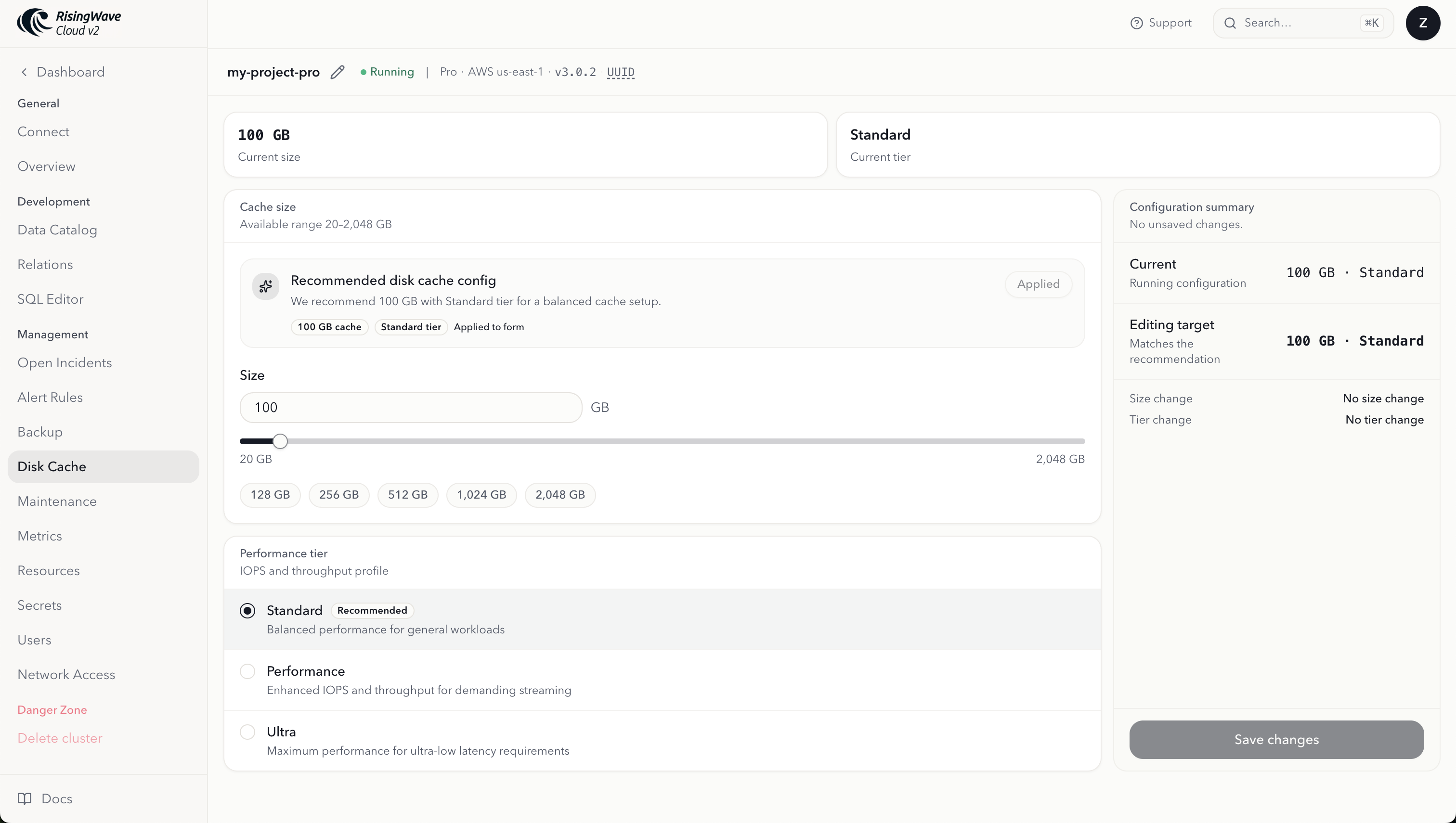

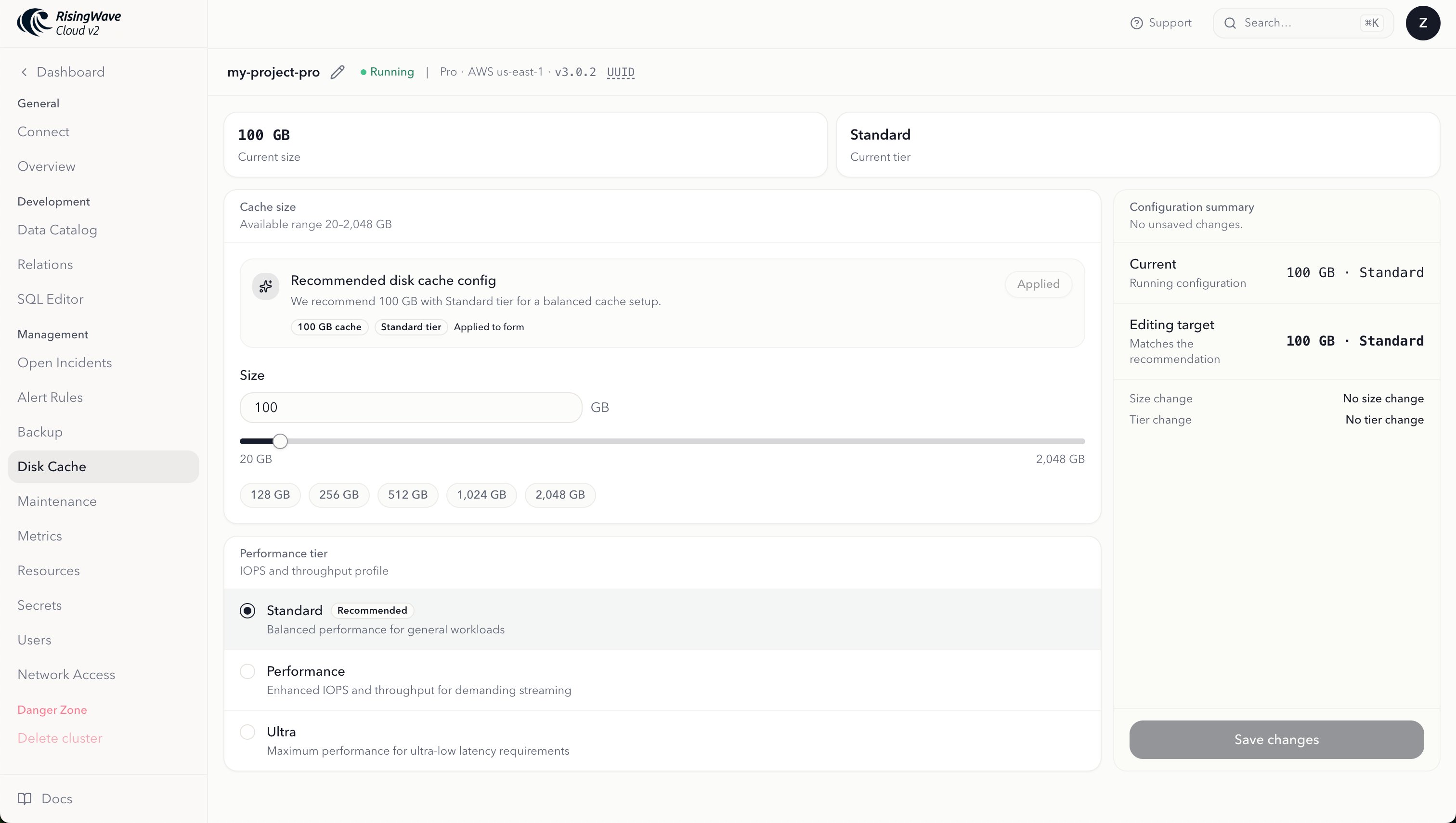

Disk Cache page showing the resource group selector, recommended config panel, cache size input, and performance tier options.

​
Scale the disk cache during a cluster rescale

When you scale up your streaming nodes, the cache configuration from the previous size may no longer fit the new node shape. An undersized cache or a lower-tier disk can cause temporary performance regressions while new data is fetched from object storage. When the rescale changes the streaming node size, the rescale dialog shows a Disk Cache Configuration section with an Apply recommended optimization toggle. Enable it to resize the cache and select an appropriate performance tier in the same operation. This optimization updates the cluster’s disk cache configuration. To adjust disk cache for a specific resource group, select it on the Disk Cache page.

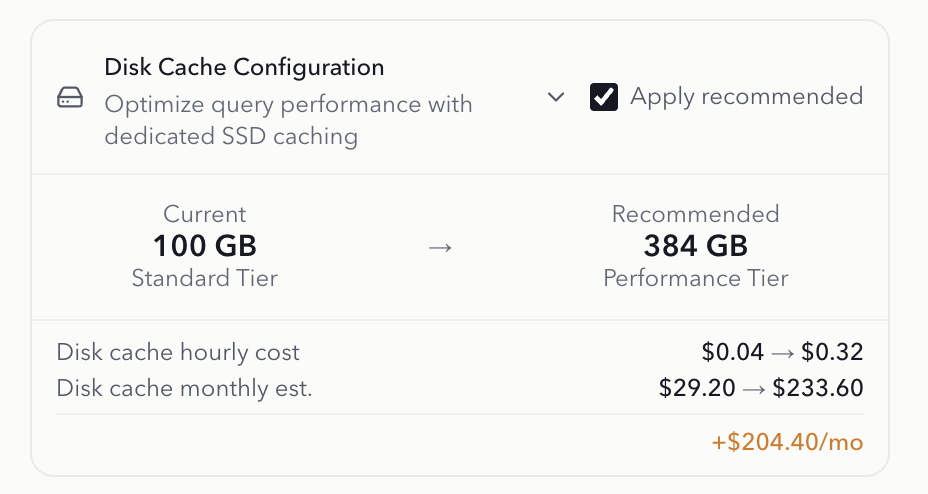

Cluster rescale dialog with the Disk Cache Configuration section and the Apply recommended optimization toggle.
