Maintain wide table with table sinks

This guide introduces how to maintain a wide table whose columns come from different sources. Traditional data warehouses or ETL use a join query for this purpose. However, streaming join brings issues such as low efficiency and high memory consumption.

In some cases with limitation, use the CREATE SINK INTO TABLE and ON CONFLICT clause can save the resources and achieve high efficiency.

Merge multiple sinks with the same primary key

CREATE TABLE d1(v1 int, k int primary key);
CREATE TABLE d2(v2 int, k int primary key);
CREATE TABLE d3(v3 int, k int primary key);
CREATE TABLE wide_d(v1 int, v2 int, v3 int, k int primary key)
ON CONFLICT DO UPDATE IF NOT NULL;

CREATE SINK sink1 INTO wide_d (v1, k) AS
  SELECT v1, k FROM d1;
CREATE SINK sink2 INTO wide_d (v2, k) AS
  SELECT v2, k FROM d2;
CREATE SINK sink3 INTO wide_d (v3,k) AS
  SELECT v3, k FROM d3;

ON CONFLICT only controls how INSERT and UPDATE events are handled. By default, CREATE SINK ... INTO forwards DELETE events as well. If any upstream deletes a row with a given primary key, the corresponding row in the wide table will be deleted.

To prevent DELETE events from removing rows in the wide table, force the sink to be append-only:

CREATE SINK sink1 INTO wide_d (v1, k) AS
  SELECT v1, k FROM d1
  WITH (
    type = 'append-only',
    force_append_only = 'true'
  );

For RisingWave v2.6 and earlier, you must set type = 'append-only' and force_append_only = 'true' for this pattern.

Enrich data with foreign keys in Star/Snowflake schema model

With star schema, the data is constructed with a central fact table surrounded by several related dimension tables. Each dimension table is joined to the fact table through a foreign key relationship. Given that the join key is the primary key of the dimension tables, we can rewrite the query as a series of sink into table.

CREATE TABLE fact(pk int primary key, k1 int, k2 int, k3 int);
CREATE TABLE d1(pk int primary key, v int);
CREATE TABLE d2(pk int primary key, v int);
CREATE TABLE d3(pk int primary key, v int);

CREATE TABLE wide_fact(pk int primary key, v1 int, v2 int, v3 int)
  ON CONFLICT DO UPDATE IF NOT NULL;

/* The main sink controls which rows exist in wide_fact. */
CREATE SINK fact_sink INTO wide_fact (pk) AS
  SELECT pk FROM fact;

/* Dimension sinks are force-append-only to avoid propagating DELETE into the wide table. */
CREATE SINK sink1 INTO wide_fact (pk, v1) AS
  SELECT fact.pk, d1.v
  FROM fact JOIN d1 ON fact.k1 = d1.pk
  WITH (
    type = 'append-only',
    force_append_only = 'true'
  );

CREATE SINK sink2 INTO wide_fact (pk, v2) AS
  SELECT fact.pk, d2.v
  FROM fact JOIN d2 ON fact.k2 = d2.pk
  WITH (
    type = 'append-only',
    force_append_only = 'true'
  );

CREATE SINK sink3 INTO wide_fact (pk, v3) AS
  SELECT fact.pk, d3.v
  FROM fact JOIN d3 ON fact.k3 = d3.pk
  WITH (
    type = 'append-only',
    force_append_only = 'true'
  );

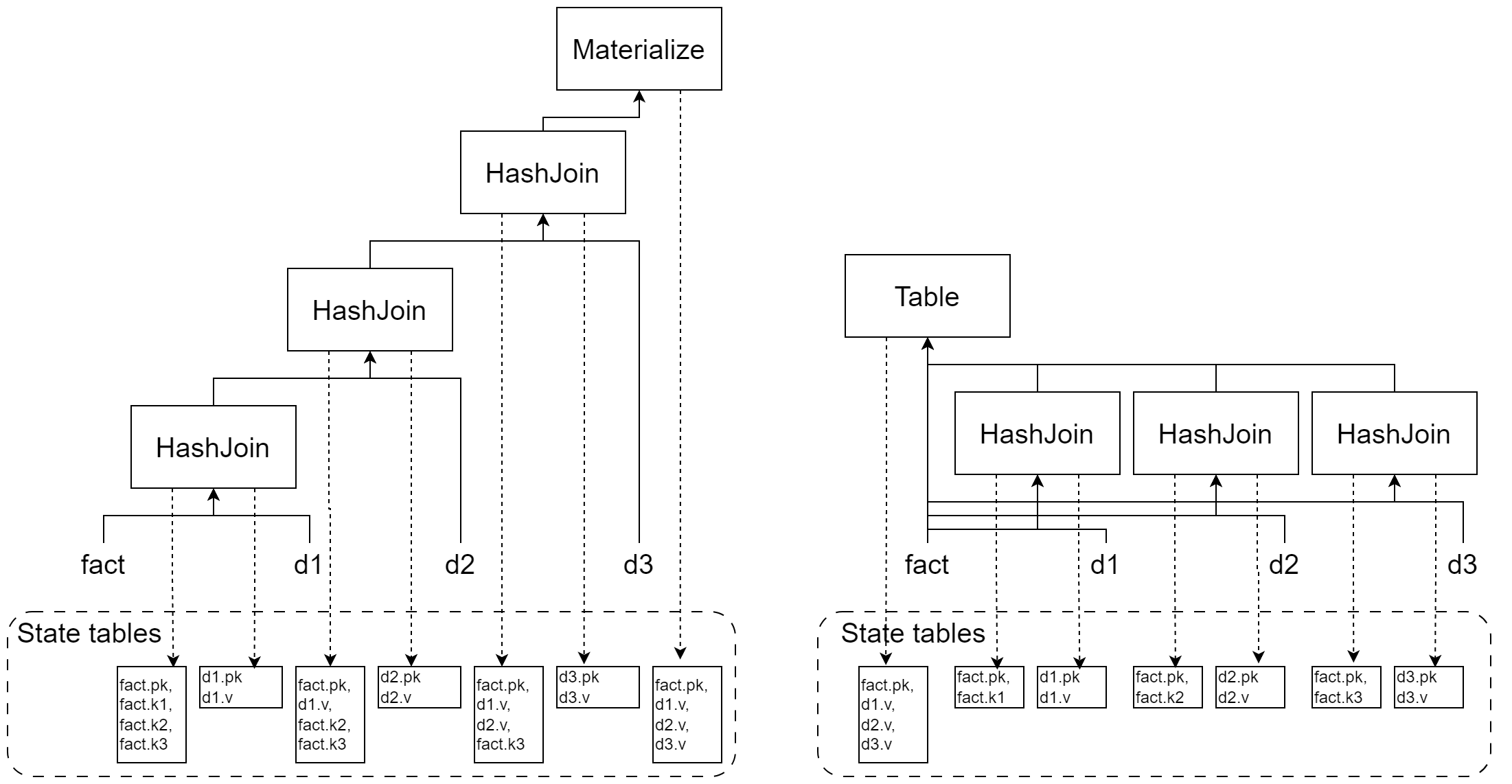

The example above and the following SQL with left join operation are completely equivalent.

CREATE MATERIALIZED VIEW wide_fact AS
SELECT fact.pk, d1.v v1, d2.v v2, d3.v v3
FROM fact
LEFT JOIN d1 ON fact.k1 = d1.pk
LEFT JOIN d2 ON fact.k2 = d2.pk
LEFT JOIN d3 ON fact.k3 = d3.pk

But maintaining wide table with table sinks can save the resources and achieve high efficiency.

Furthermore, for the large dimension table, we can use Temporal Join as the partial join to reduce the streaming state and improve performance.
