Sink data from RisingWave to MySQL with the JDBC connector

This guide will introduce how to sink data from RisingWave to JDBC-available databases using the JDBC sink connector.

MySQL is a commonly used RDS with a JDBC driver and it is available as a cloud database through AWS for easy setup and maintenance. We will show you how to configure MySQL and RisingWave to create a MySQL sink. The configurations for RisingWave when connecting to any JDBC-available database will be the same.

The supported MySQL versions are 5.7 and 8.0.x

Set up a MySQL database

AWS RDS

Before using the native MySQL CDC connector in RisingWave, you need to complete several configurations on MySQL.

Set up a MySQL RDS instance on AWS

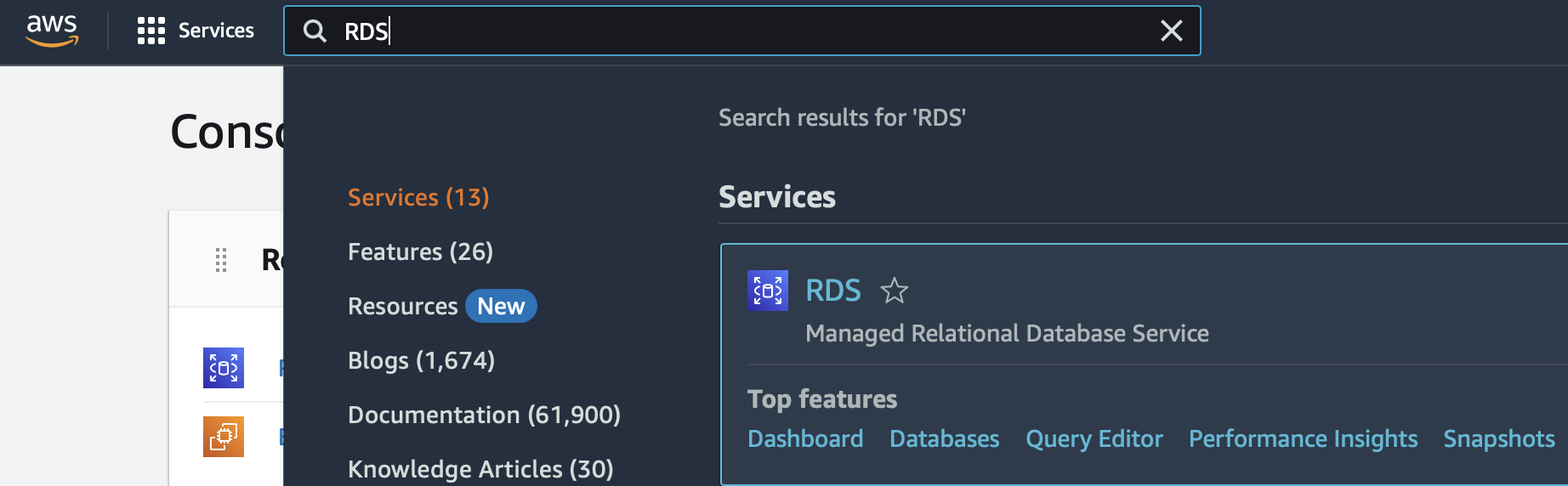

1. Log in to the AWS console. Search “RDS” in services and select the RDS panel.

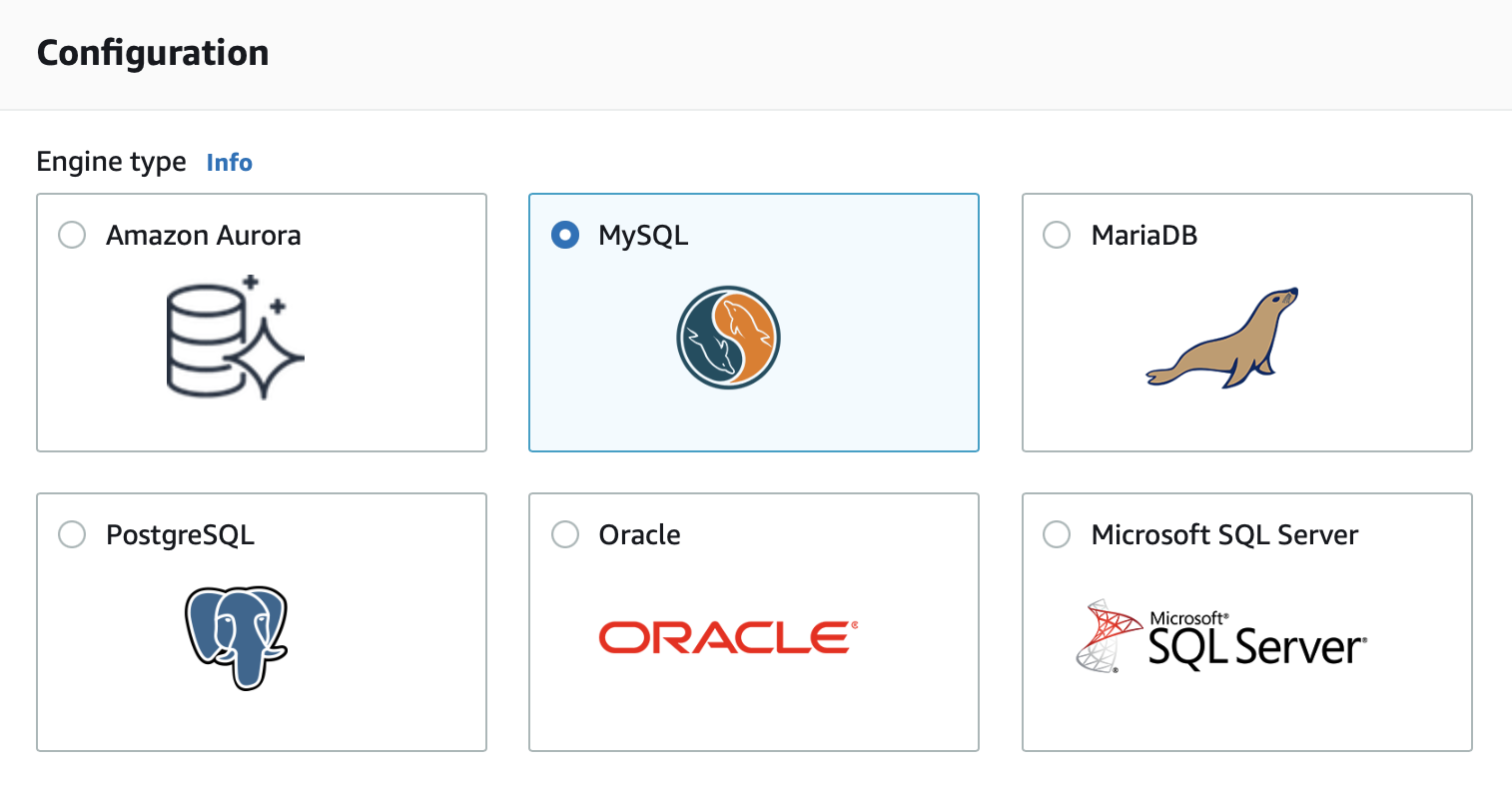

2. Create a database with MySQL as the Engine type. We recommend setting up a username and password or using other security options.

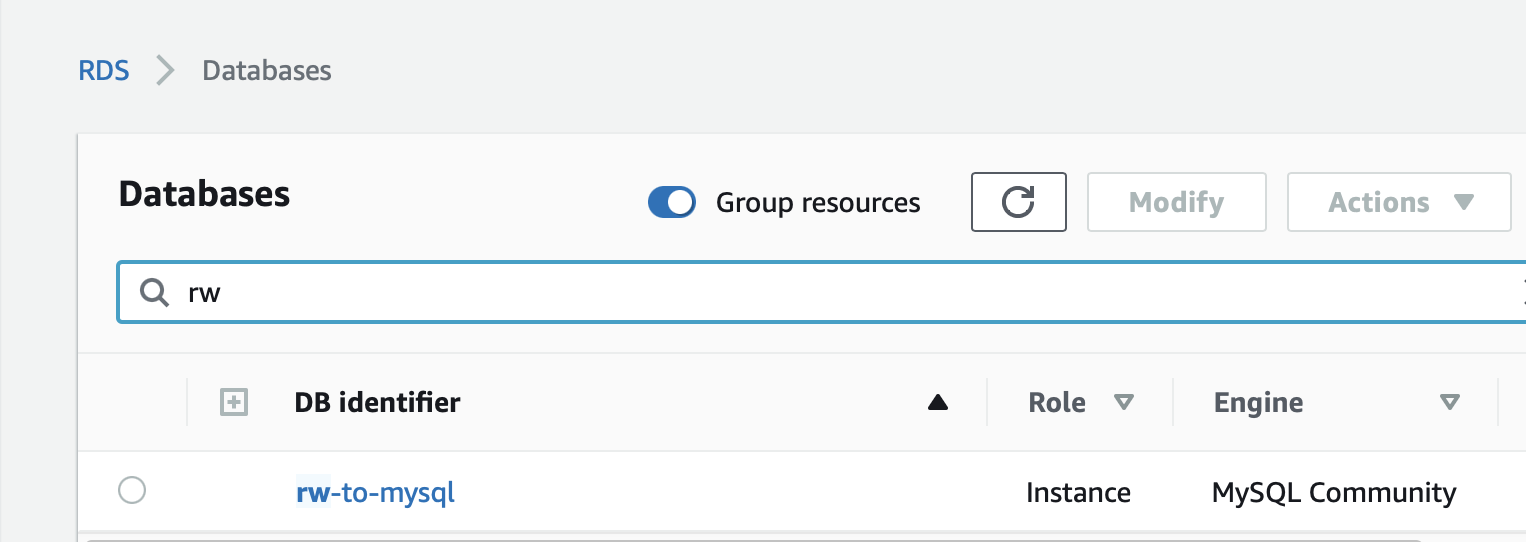

3. When the new instance becomes available, click on its panel.

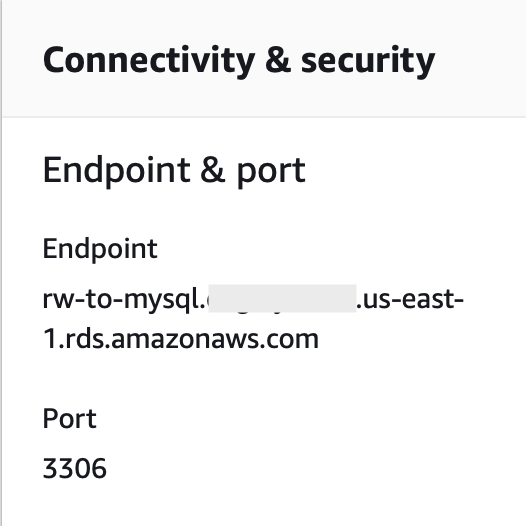

4. From the Connectivity panel, we can find the endpoint and connection port information.

Connect to the RDS instance from MySQL

Now we can connect to the RDS instance. Make sure you have installed MySQL on your local machine, and start a MySQL prompt. Fill in the endpoint, the port, and login credentials in the connection parameters.

mysql -h rw-to-mysql.xxxxxx.us-east-1.rds.amazonaws.com -P 3306 -u <username> -p <password>

For more login options, refer to the RDS connection guide.

Set up a destination table

Use the following query to set up a database and a table in the RDS instance.

CREATE TABLE test_db.personnel (
 id integer,
 name varchar(200),
 PRIMARY KEY (id)
);

If the creation is successful, expect a returned message.

Query OK, 0 rows affected (0.10 sec)

Self-hosted MySQL

Connect to MySQL

Connect to your MySQL server. See the Connect to MySQL server guide for more details.

Set up destination table

Use the following queries to set up a database and table in MySQL.

CREATE DATABASE test_db;

USE test_db;

CREATE TABLE personnel (
 id integer,
 name varchar(200),
 PRIMARY KEY (id)
);

Set up RisingWave

Install and launch RisingWave

To install and start RisingWave locally, see the Get started guide. We recommend running RisingWave locally for testing purposes.

Notes about running RisingWave from binaries

If you are running RisingWave locally from binaries and intend to use the native CDC source connectors or the JDBC sink connector, make sure you have JDK 11 or later versions installed in your environment.

Create a sink

Syntax

CREATE SINK [ IF NOT EXISTS ] sink_name
[FROM sink_from | AS select_query]
WITH (
   connector='jdbc',
   field_name = 'field', ...
);

Parameters

Parameter or clause	Description
sink_name	Name of the sink to be created.
sink_from	A clause that specifies the direct source from which data will be output. sink_from can be a materialized view or a table. Either this clause or a SELECT query must be specified.
AS select_query	A SELECT query that specifies the data to be output to the sink. Either this query or a FROM clause must be specified. See SELECT for the syntax and examples of the SELECT command.
connector	Sink connector type must be jdbc for MySQL sink.
jdbc.url	Required. The JDBC URL of the destination database necessary for the driver to recognize and connect to the database.
user	The user name for the database connection.
password	The password for the database connection.
jdbc.query.timeout	Specifies the timeout for the operations to downstream. If not set, the default is 60s.
jdbc.auto.commit	Controls whether to automatically commit transactions for JDBC sink. If not set, the default is false.
table.name	Required. The table in the destination database you want to sink to.
type	Data format. Allowed formats: append-only: Output data with insert operations. upsert: Output data as a changelog stream.
primary_key	Required if type is upsert. The primary key of the downstream table.
tcp.keepalive.enable	Enables TCP keepalive for the connection to the downstream database. If not set, the default is false.
tcp.keepalive.idle	The time (in seconds) the connection must be idle before the first keepalive probe is sent. Takes effect only when tcp.keepalive.enable is true. If not set, the default is 600 (10 minutes).
tcp.keepalive.interval	The time (in seconds) between consecutive keepalive probes. Takes effect only when tcp.keepalive.enable is true. If not set, the default is 10.
tcp.keepalive.count	The number of unacknowledged keepalive probes before the connection is considered dead. Takes effect only when tcp.keepalive.enable is true. If not set, the default is 3.

Sink data from RisingWave to MySQL

Create a table and sink

To sink to MySQL, make sure that RisingWave table and the MySQL table share the same table schema. Use the following queries in RisingWave to create a table and sink.

The jdbc.url must be accurate. The format varies slightly depending on if you are using AWS RDS MySQL or a self-hosted version of MySQL. If your MySQL is self-hosted, the jdbc.url would have the following format: jdbc:mysql://127.0.0.1:3306/testdb?user=<username>&password=<password>.

To treat a null catalog as the current database and prevent access to system schemas, append nullCatalogMeansCurrent to jdbc.url. The jdbc.url would have the following format: jdbc:mysql://<aws_rds_endpoint>:<port>/test_db?nullCatalogMeansCurrent=true.

CREATE TABLE personnel (
 id integer,
 name varchar,
);

CREATE SINK s_mysql FROM personnel WITH (
 connector='jdbc',
 jdbc.url='jdbc:mysql://<aws_rds_endpoint>:<port>/test_db',
 user='<username>',
 password='<password>',
 table.name='personnel',
 type = 'upsert',
 primary_key = 'id'
);

Update the table

Insert some data with the following query. Remember to use the FLUSH command to commit the update.

INSERT INTO personnel VALUES (1, 'Alice'), (2, 'Bob');

FLUSH;

Verify the sink connection

The changes will then be synced to MySQL. To verify the update, connect to MySQL and query the table. The changes you made to the table should be reflected.

SELECT * FROM personnel;

+------+-------+
| id   | name  |
+------+-------+
|    1 | Alice |
+------+-------+
|    2 | Bob   |
+------+-------+

Data type mapping

For the MySQL data type mapping table, see the Data type mapping table under the Ingest data from MySQL CDC topic.

Additional notes regarding sinking data to MySQL:

• Array data types in RisingWave when sinked to MySQL will be converted to a string. Only one-dimensional arrays can be sinked to MySQL. For instance, ARRAY['Value 1', 'Value 2'] when sinked to MySQL will be converted to the string Value 1, Value 2.
• For array type, we only support smallint, integer, bigint, real, double precision, and varchar type now.
• It’s better to set connectionTimeZone=UTC in jdbc.url to get the correct timestamptz type data. For more details, see MySQL’s documentation.
