Building a RAG system on RisingWave

Build a Retrieval-Augmented Generation (RAG) system with RisingWave that answers questions based on the documentation.

Overview

In this tutorial, you will learn how to build a RAG system in RisingWave that answers questions about its own features. The system ingests data from the RisingWave documentation and stores both the document content and their embeddings.

When a user asks a question, the system generates an embedding for the query, retrieves the most similar documents from the vector database, and calls an LLM to generate an answer based on the retrieved content.

Prerequisites

• Install and run RisingWave. For detailed instructions on how to quickly get started, see the Quick start guide.

• Ensure you have a valid OpenAI API key and set it as the OPENAI_API_KEY environment variable below.

Step 1: Set up the data pipeline

When the server started, create the necessary tables and materialized views to build up the data pipeline.

CREATE TABLE documents (
    file_name VARCHAR,
    content TEXT,
    PRIMARY KEY (file_name)
);

-- Create a SQL UDF to avoid writing API key multiple times.
CREATE FUNCTION text_embedding(t VARCHAR) RETURNS REAL[] LANGUAGE sql AS $$
    SELECT openai_embedding('your-openai-api-key', 'text-embedding-3-small', t)
$$;

CREATE MATERIALIZED VIEW document_embeddings AS
WITH t AS (
    SELECT
        *, text_embedding(content) AS embedding
    FROM documents
)
SELECT
    file_name,
    content,
    embedding
FROM t
WHERE embedding IS NOT NULL;

Step 2: Load data

For this demo, we use the documents from the RisingWave docs.

git clone https://github.com/risingwavelabs/risingwave-docs.git
cd risingwave-docs

# Load all the documents (`.mdx` files) into the `documents` table
find . -name "*.mdx" | while read -r file; do
    content=$(cat "$file" | sed "s/'/''/g")
    sql_statement="INSERT INTO documents (file_name, content) VALUES ('$file', '$content') ON CONFLICT (file_name) DO UPDATE SET content = EXCLUDED.content;"
    echo "$sql_statement" | psql -h 127.0.0.1 -p 4566 -d dev -U root
    echo "Processed: $file"
done

Step 3: Query data

To compare the similarity between the question and the documents, we need to introduce the cosine_similarity UDF.

CREATE FUNCTION cosine_similarity(v1 real[], v2 real[]) RETURNS real LANGUAGE rust AS $$
    fn cosine_similarity(a: &[f32], b: &[f32]) -> f32 {
        let dot_product: f32 = a.iter().zip(b).map(|(a, b)| a * b).sum();
        let norm_a: f32 = a.iter().map(|a| a * a).sum();
        let norm_b: f32 = b.iter().map(|b| b * b).sum();
        dot_product / (norm_a * norm_b).sqrt()
    }
$$;

Now, we can use the document_embeddings materialized view to answer questions.

The following SQL uses the text_embedding UDF to embed the question, and then finds the top 10 most similar documents from the document_embeddings materialized view.

WITH question_embedding AS (
    SELECT text_embedding('write a Python UDF') as embedding
    LIMIT 1 -- Hack: ensure the function is called once only
)
SELECT
    d.file_name,
    d.content,
    cosine_similarity(d.embedding, q.embedding) as similarity
FROM document_embeddings d
CROSS JOIN question_embedding q
ORDER BY similarity DESC
LIMIT 10;

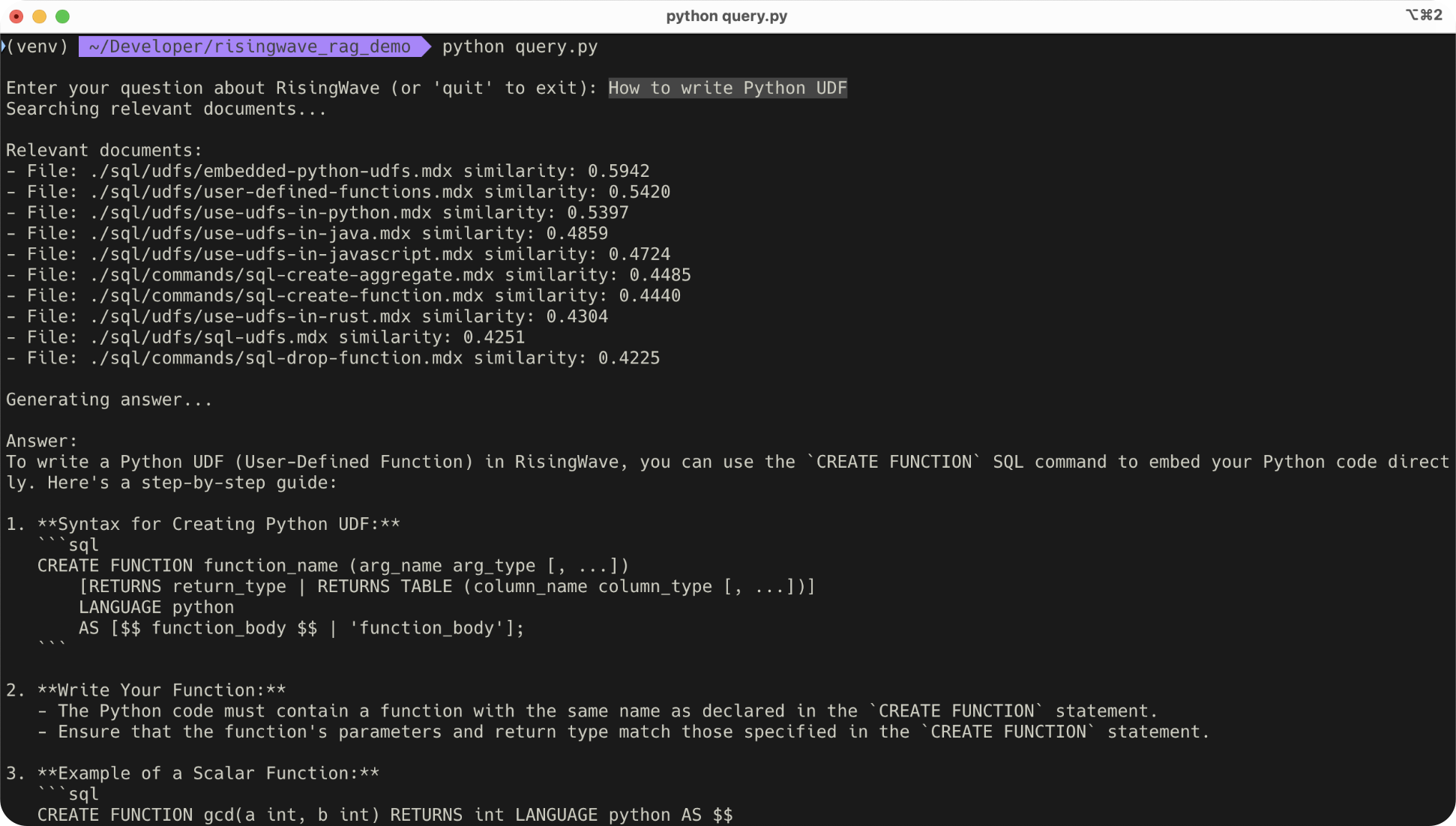

For your convenience, we provide a Python script to answer questions.

python query.py

Summary

In this tutorial, you learn:

• How to use RisingWave’s materialized views and UDFs to create a data pipeline for storing and querying vector embeddings.

• How to perform a semantic search in SQL to retrieve relevant documents for answering user questions.
